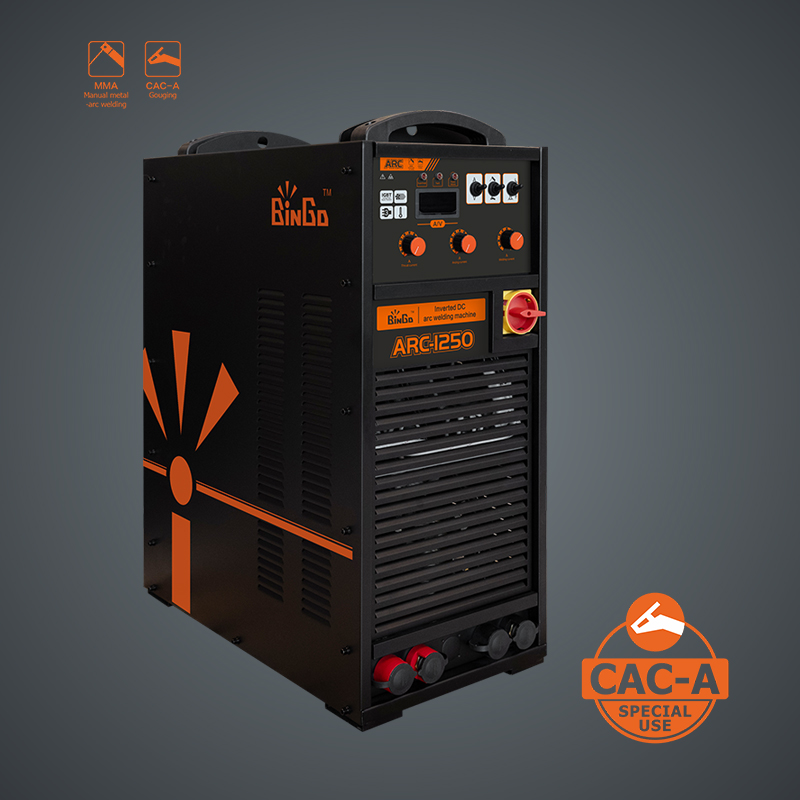

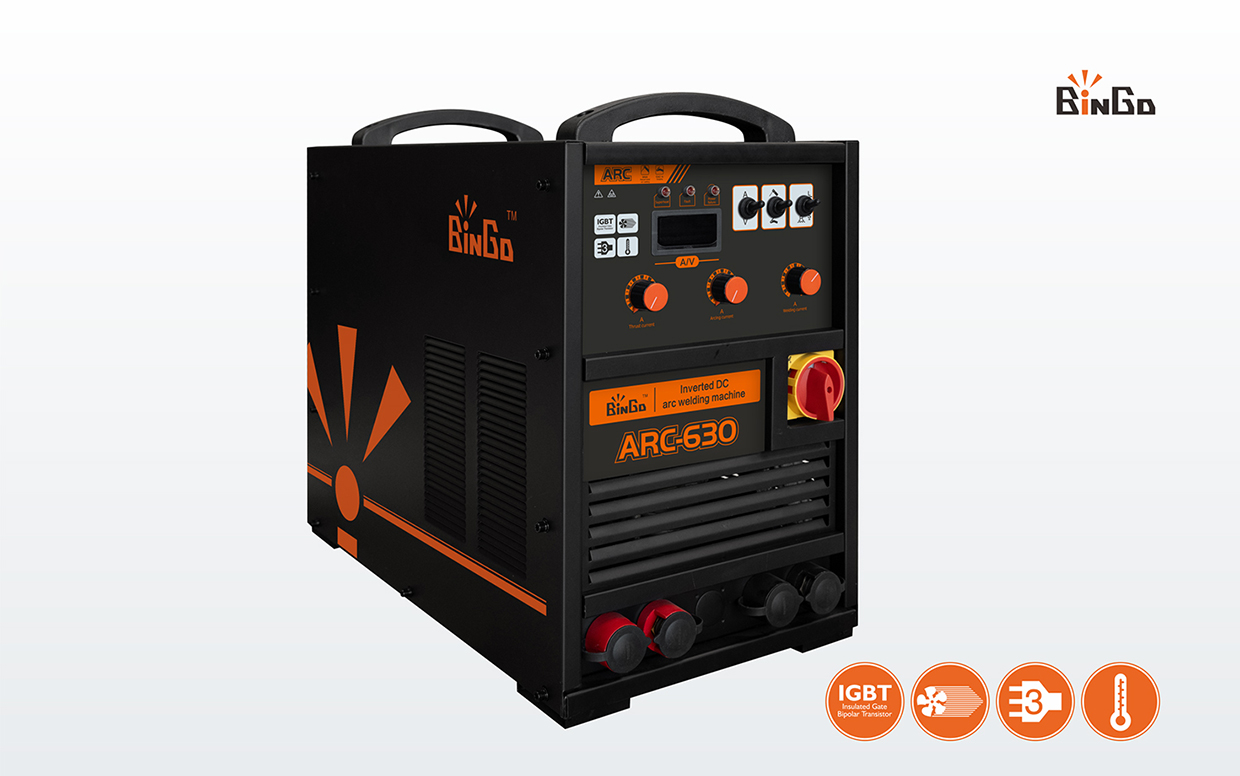

ARC 630/1000/1250/1500
Inverted DC arc welding machine
Product Video
Product Details

Functions:
Manual metal-arc welding.
Weldable metals:
Carbon steel and cast iron.
Features:
◆ The control panel has a optimal design and digital display, and the welding current can be adjusted precisely;
◆ The arc striking current can be adjusted separately, and it has an excellent arc striking performance;
◆ The arc thrust current can be adjusted separately;
◆ It has safety protection functions like the temperature protection, over-current protection and short-circuit protection.
Technical Parameter
Model | ARC-630 | ARC-1000 | ARC-1250 | ARC-1500 |
Rated input voltage / frequency | Three- phase380V(+ / -)10% 50Hz | |||
Rated input capacity (KVA) | 31.6 | 55 | 70 | 89 |
Rated input current (A) | 52 | 83 | 115 | 140 |
Rated output voltage (V) | 44 | 60 | 70 | 70 |
Duty cycle (%) | 100 | |||
Output no-load voltage (V) | 86 | 86 | 86 | 86 |
Output current range (A) | 63~630 | 63~1000 | 63~1250 | 63~1500 |
Shell protection grade | IP21S | |||
Insulation grade | H/B | |||
Cooling mode | Air cooling |
