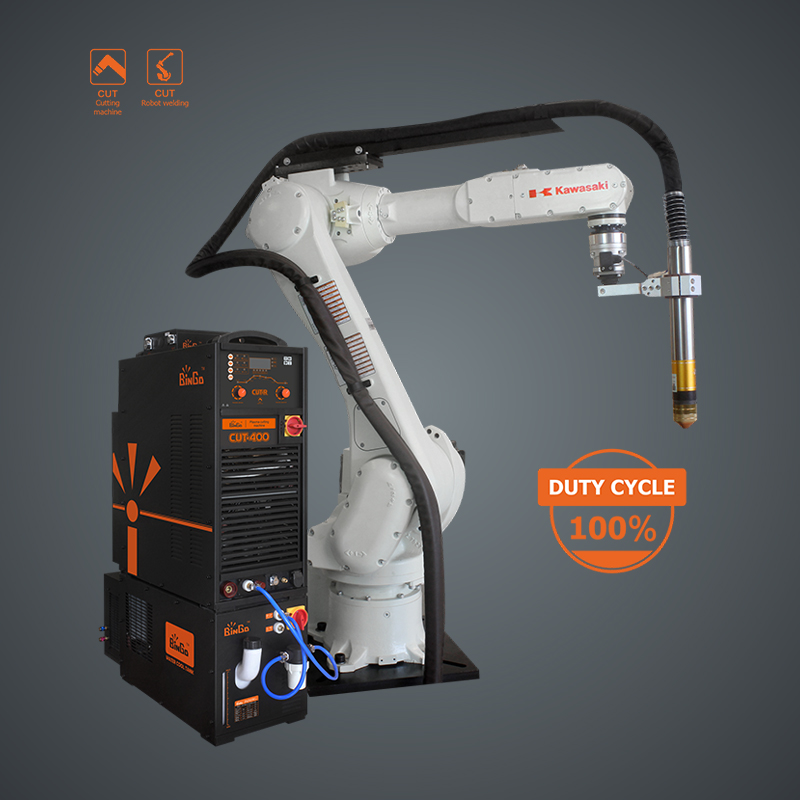

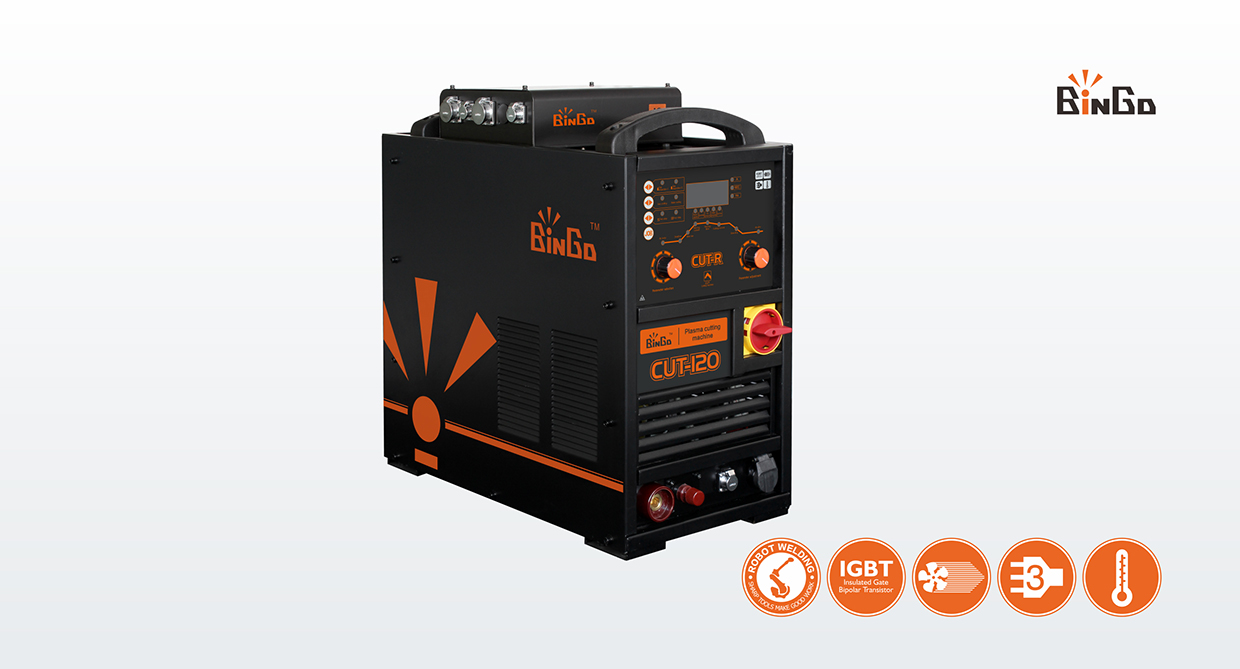

CUT-R
Inverted plasma cutting machine
Product Video
Product Details
Technical Parameter
| Model | CUT-100R | CUT-120R | CUT-160R | CUT-200R | CUT-300R | CUT-400R |
| Rated input voltage / frequency | Three- phase380V（+ / -）10% 50Hz | |||||
| Rated input capacity（KVA） | 13.7 | 25.7 | 32 | 40 | 70 | 95 |
| Rated input current（A） | 22 | 39 | 43 | 54 | 95 | 132 |
| Rated output voltage（V） | 120 | 128 | 160 | 160 | 200 | 200 |
| Output current range（A） | 40~100 | 40~120 | 40~160 | 40-200 | 40-300 | 40-400 |
| Output no-load voltage（V） | 345 | 345 | 380 | 380 | 380 | 380 |
| Duty cycle（%） | 100 | |||||
| Ancillary welding machine | Air cooling | Air cooling | Water cooling | Water cooling | Water cooling | Water cooling |
| Air pressure of welding machine（MPa） | 0.45~0.55 | |||||
| Maximum utinig ticknes of carbon seel（mm） | 25 | 35 | 45 | 55 | 80 | 90 |
| Optimal cting ticnes of carbon seel（mm） | 1~12 | 1~18 | 1~25 | 1~30 | 1~40 | 1~50 |
| Pilot arc mode | HF arc | |||||
| Shell protection grade | IP21S | |||||
| Insulation grade | H/B | |||||
