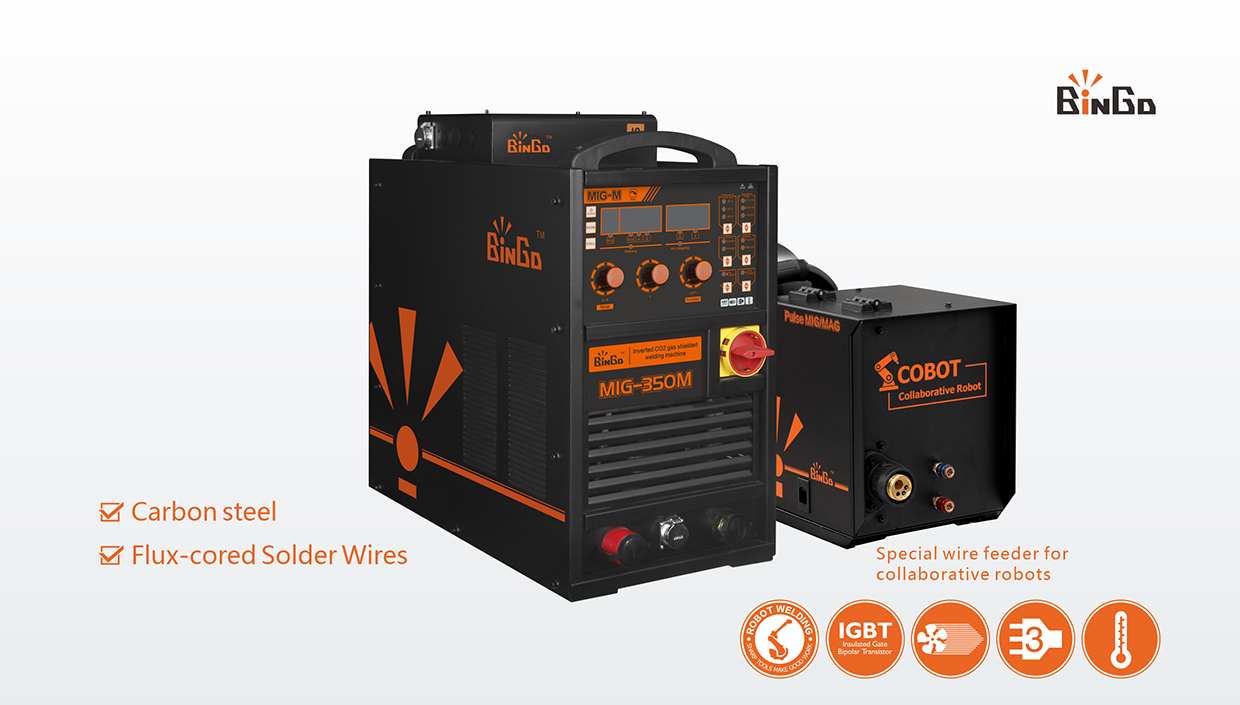

MIG-MR
Inverted CO2 gas shielded welding machine
Product Video
Product Details
Technical Parameter
| Model |
MIG-350MR |
MIG-500MR |
MIG-630MR | |
| Rated input voltage / frequency | Three- phase380V（+ / -）10% 50Hz | |||
| Rated input capacity（KVA） | 17.1 | 27.6 | 36 | |
| Rated input current（A） | 26 |
42 |
54 | |
| Rated output voltage（V） | 31.5 | 39 | 44 | |
| Duty cycle（%） | 100 | 100 | 100 | |
| Output no-load voltage（V） | 70 | 85 | 86 | |
| Output current range（A） | 20~350 | 20~500 | 20-630 | |
| Output voltage range（V） | 14~40 | 14~50 | 14~50 | |
| Welding wire diameter（mm） | 0.8、1.0、1.2 | 1.0、1.2、1.6 | 1.2、1.6、2.0 | |
| Welding wire type | Constant voltage characteristic | CO₂ carbon steel、carbon steel、carbon steel flux-core | ||
| Wire feeding type | Push/Push-pull | |||
| Cooling mode | Water cooling / Air cooling | |||
| Shell protection grade | IP21S | |||
| Insulation grade | H/B | |||
