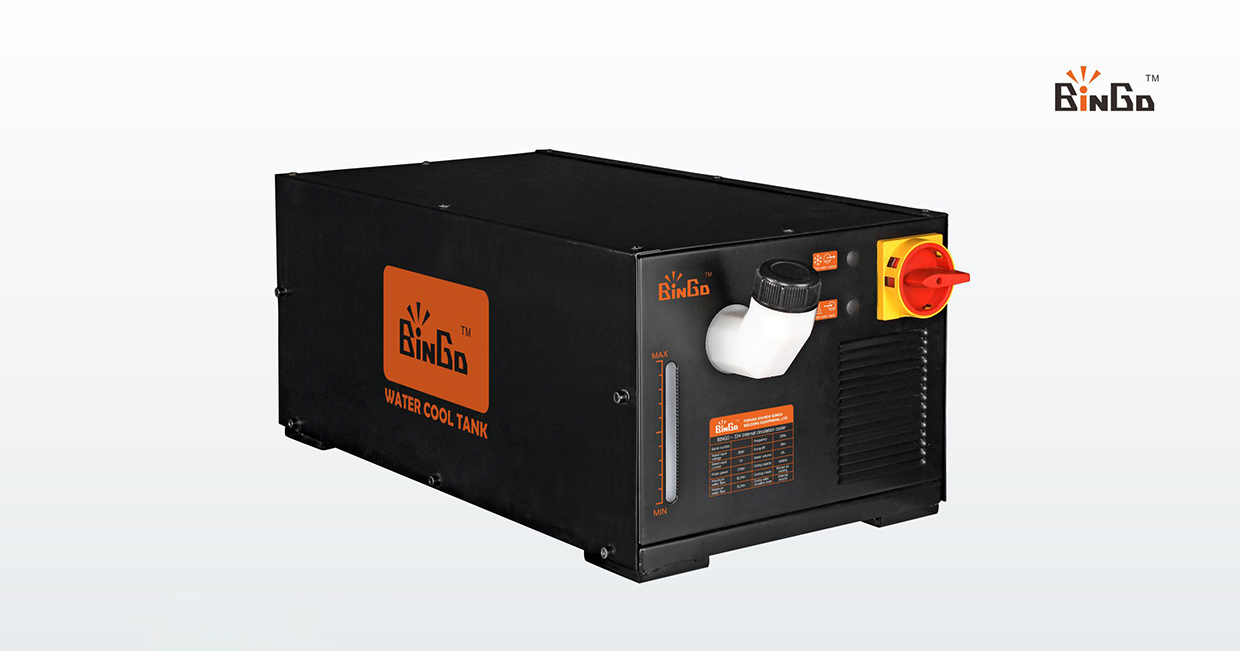

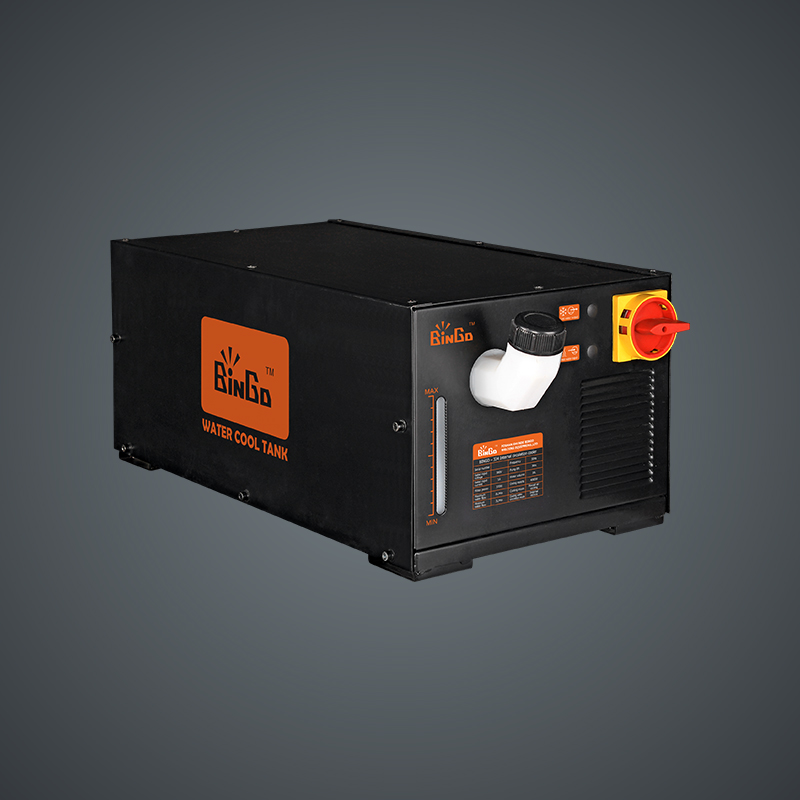

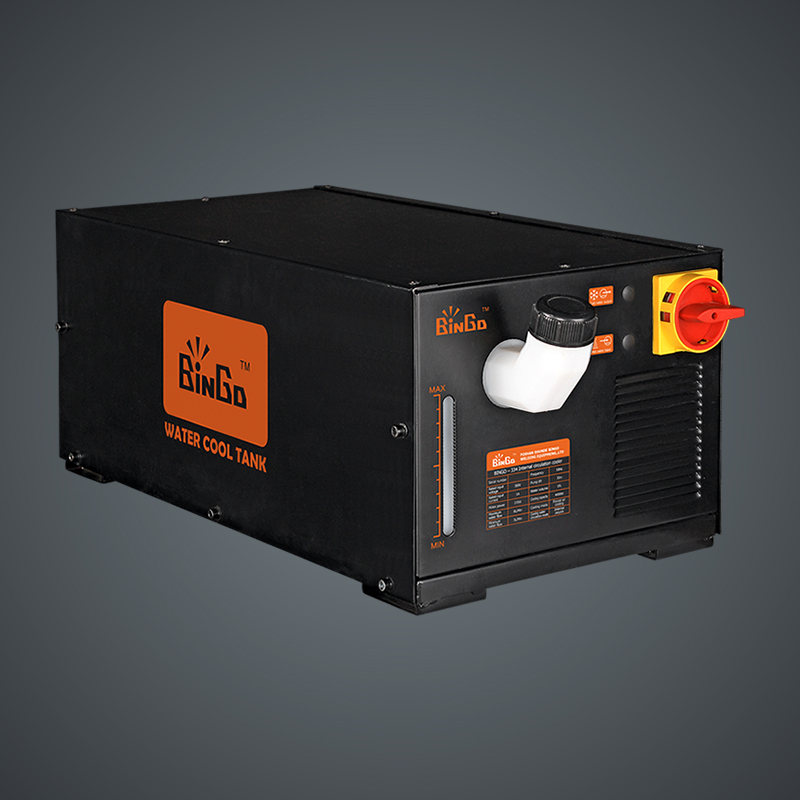

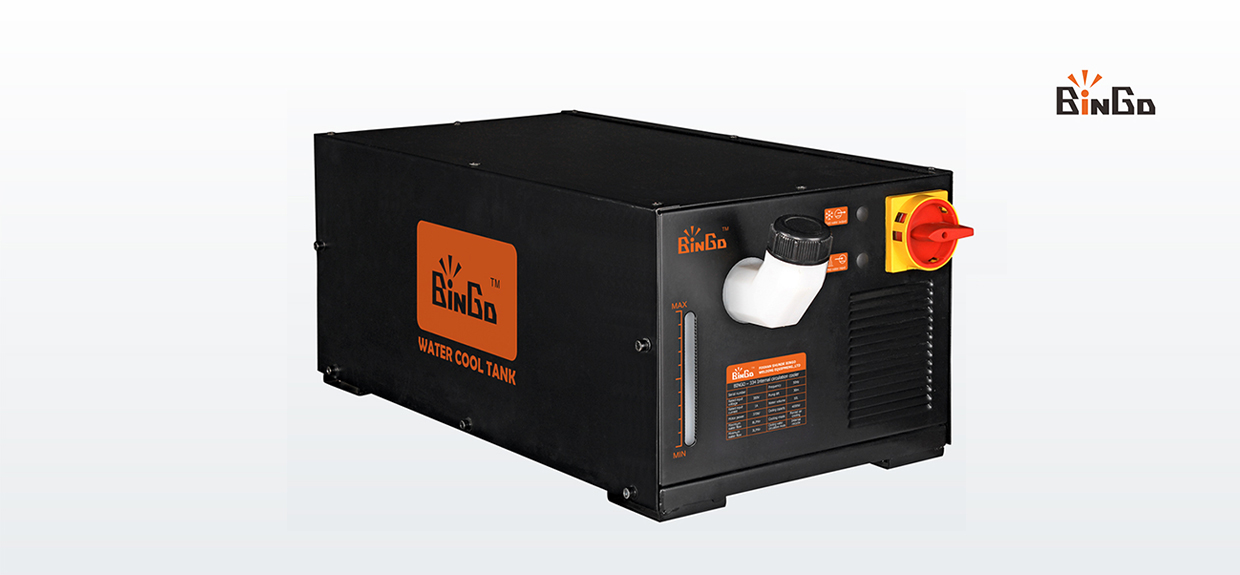

Model:BINGO 294-10/314-10/334-10/318-20/334-20Inner circulation water chiller series

Functions:
Cooling welding gun

Types of cooling welding gun:
Gas shielded welding gun and argon arc welding gun.

Features:
It uses the high quality special water pump for the lift of welder, which has a long service life, leakage-proof and reliable;

It ensures the water cycle pressure of the welding gun;

It has an independent design and is convenient for use;

The independent water information socket of welder effectively guarantees the information exchange between the water tank and the welding machine;

The large radiator adopts the copper tube with a good heat dissipation effect, in order to improve the production efficiency.

View Big Picture

Technical parameters

Model BINGO-294 BINGO-314-10 BINGO-334-10 BINGO-318-20 BINGO-334-20
Rated input voltage / frequency Two-phase380V(+ / -)10% 50Hz
Rated input capacity(KVA) 0.37 0.37 0.37 0.37 0.37
Rated input current(A) 1 1 1 1 1
Cooling capacity(W) 4000 4000 4000 6000 6000
Rated load sustainability(%) 100 100 100 100 100
Max water flow 8L /MIN 8L /MIN 8L /MIN 10L /MIN 10L /MIN
Mini water flow 3L /MIN
Capacity 10L 10L 10L 20L 20L
Pump lift 30M 30M 30M 50M 50M
Cooling mode Fanning mode
Cooling water circulation Internal circulation
Shell protection grade IP21S
Collocation model WSM314/400
NBC350
MIG-II/IX
NBC-M
LGK-160
WSM-500
WSME-315/400/500 LGK-200
MIG-II/IX
NBC-M
LGK-160
WSM-500
WSME-500/630
LGK-300/400
