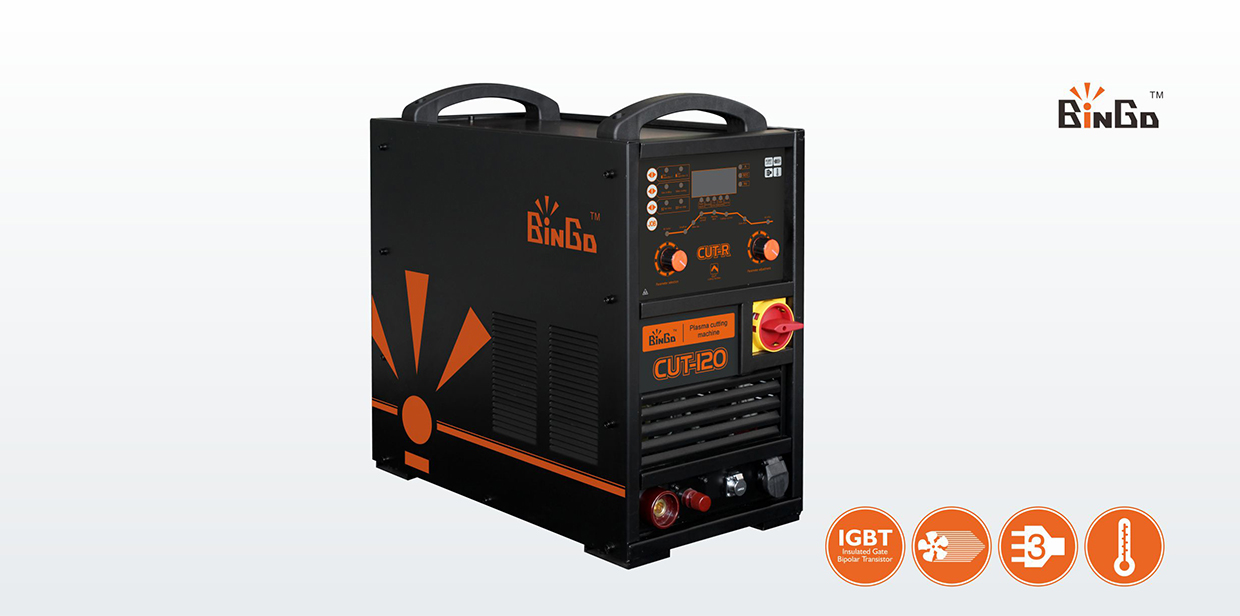

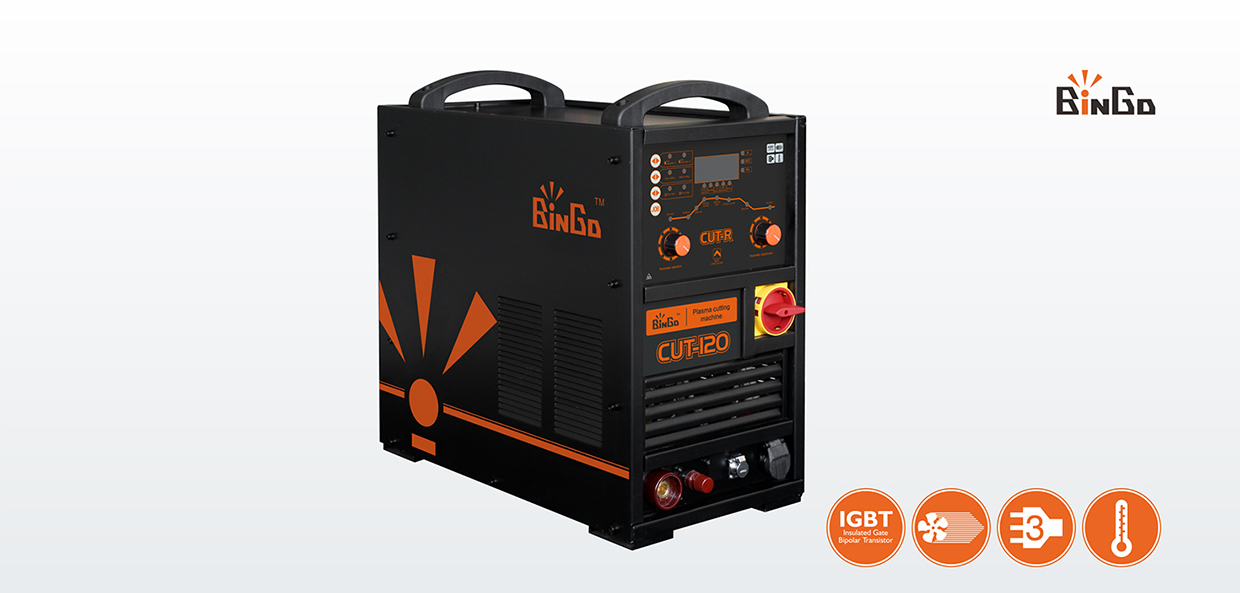

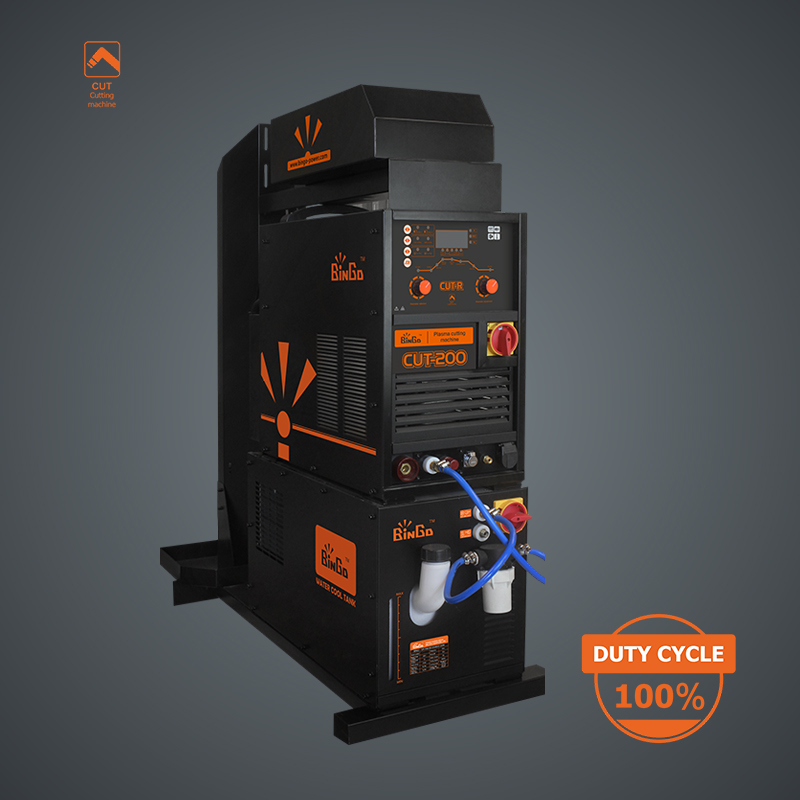

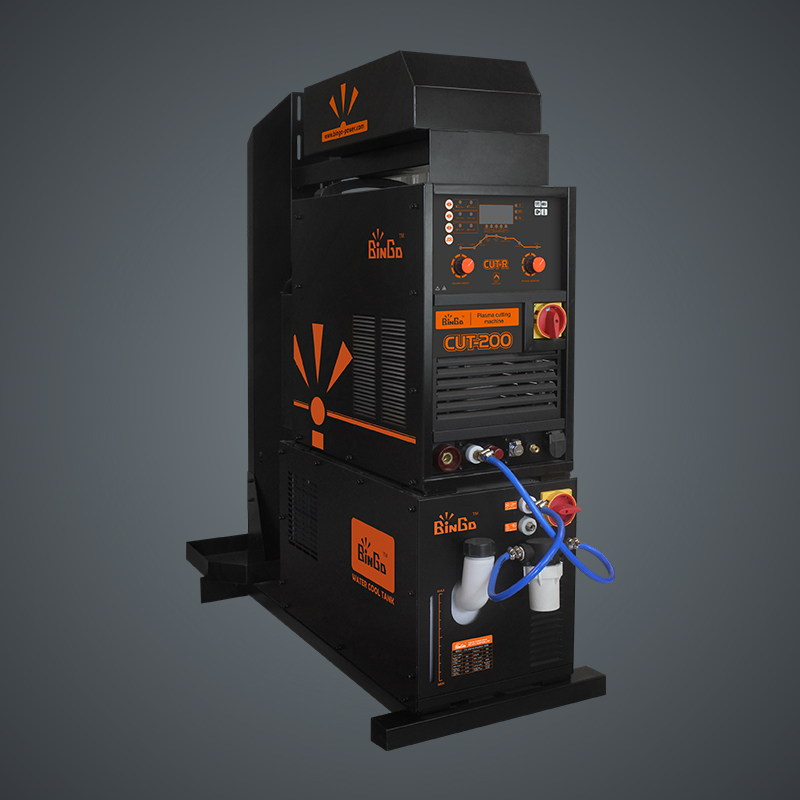

Model:CUT 100/120/160/200/300/400Inverted plasma cutting machine
Functions:
Plasma cutting.
Application industry:
Low-carbon steel、Stainless steel、Aluminum and other nonferrous metals.
Features:
◆ The IGBT soft switch inverter is small and light and convenient for movement;
◆ Self-locking/non-self-locking function;
◆ The arc energy is highly centralized, with a narrow cutting mouth, little adhering slag and straight cutting plane;
◆ It is an efficient and energy-saving equipment with the high power factor;
◆ It has the rich numerical control and robot connection port and has the ports of short-circuit, gas shortage, water shortage and successful arc striking and arc voltage;
◆ The remote control and close control can be selected haphazard.
Technical parameters
| Model | CUT-100 | CUT-120 | CUT-160 | CUT-200 | CUT-300 | CUT-400 |
| Rated input voltage / frequency | Three- phase380V(+ / -)10% 50Hz | |||||
| Rated input capacity (KVA) | 13.7 | 25.7 | 32 | 40 | 70 | 95 |
| Rated input current (A) | 22 | 39 | 43 | 54 | 95 | 132 |
| Rated output voltage (V) | 120 | 128 | 160 | 160 | 200 | 200 |
| Output current range (A) | 40~100 | 40~120 | 40~160 | 40-200 | 40-300 | 40-400 |
| Output no-load voltage (V) | 345 | 345 | 380 | 380 | 380 | 380 |
| Rated load sustainabiity (% ) | 100 | |||||
| Ancillary welding machine | Air cooling | Air cooling | Water cooling | Water cooling | Water cooling | Water cooling |
| Air pressure of welding machine (MPa) | 0.45~0.55 | |||||
| Maximum utinig ticknes of carbon seel (mm) | 25 | 35 | 45 | 55 | 80 | 90 |
| Optimal cting ticnes of carbon seel (mm) | 1~12 | 1~18 | 1~25 | 1~30 | 1~40 | 1~50 |
| Pilot arc mode | HF arc | |||||
| Shell protection grade | IP21S | |||||
| Insulation grade | H/B | |||||
